01
Standard modular cuolock scaffolding for Facade Work
Attribute |
Description |
Product： |
Standard cuplock scaffolding |
Material： |
Q345 Steel |
Outer diameter: |
48mm |
Wall thickness: |
3.25mm |
Hot-dip Galvanized: |
Zn coating thickness: 60μm |
enforce standards： |
EN 12810 / 12811 |
Welding process： |
High-frequency welding |
Applicable scenarios： |
Industrial maintenance platform |
Product Overview
Zhuozhan’s Standard Modular Design Cuplock Scaffolding offers a versatile and efficient solution for modern construction needs. Featuring a simple yet robust cup-and-blade locking mechanism, it allows fast assembly and dismantling, saving significant labor time on site.
→ Choose Zhuozhan’s Standard Modular Cuplock Scaffolding for speed, safety, and cost efficiency on every job site!
Key Features of Cuplock Scaffolding System
Fast Assembly & Dismantling
The unique cup-and-blade locking design allows quick, tool-free assembly, saving up to 30-40% in labor time.
High Load Capacity
Built from high-strength steel, Cuplock scaffolding safely supports heavy loads for demanding construction projects.
Standard Modular Design
Made of high-quality steel, it has strong strength and good corrosion resistance, ensuring long-term durability and reliable load-bearing capacity.
Fewer Components
Simplified system means fewer parts to manage, reducing storage, handling, and transportation costs.
Superior Stability
Rigid connections enhance structural stability, ensuring worker safety at height.
Durable Surface Protection
Hot-dip galvanized finish protects against corrosion for longer service life.
Compliance with International Standards
Manufactured to meet EN12810, BS1139, and other major global safety standards.

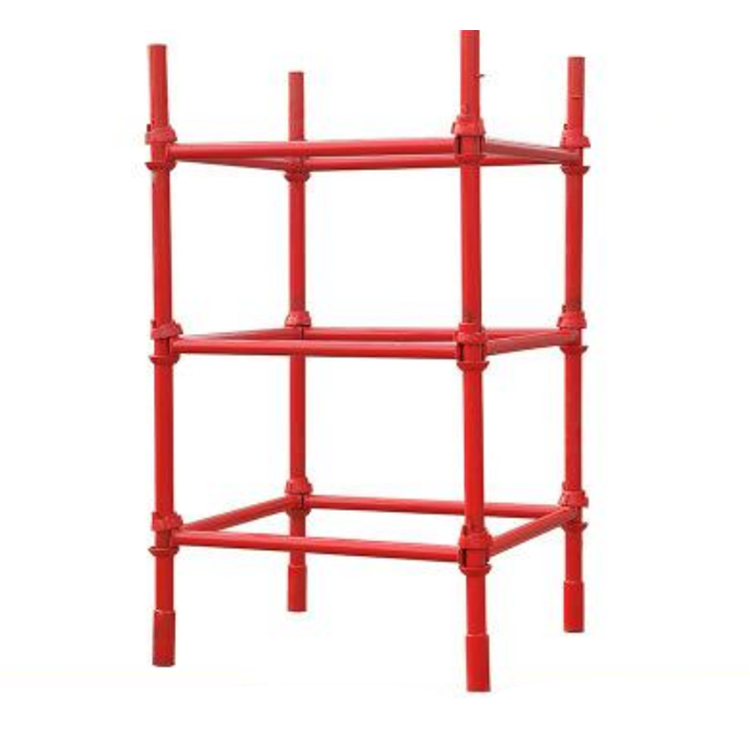

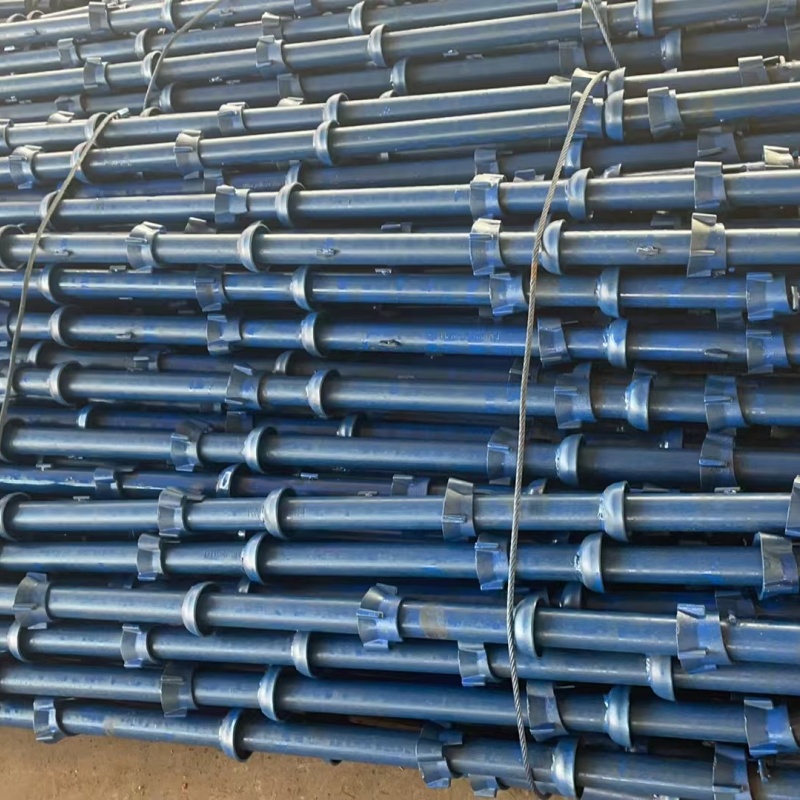

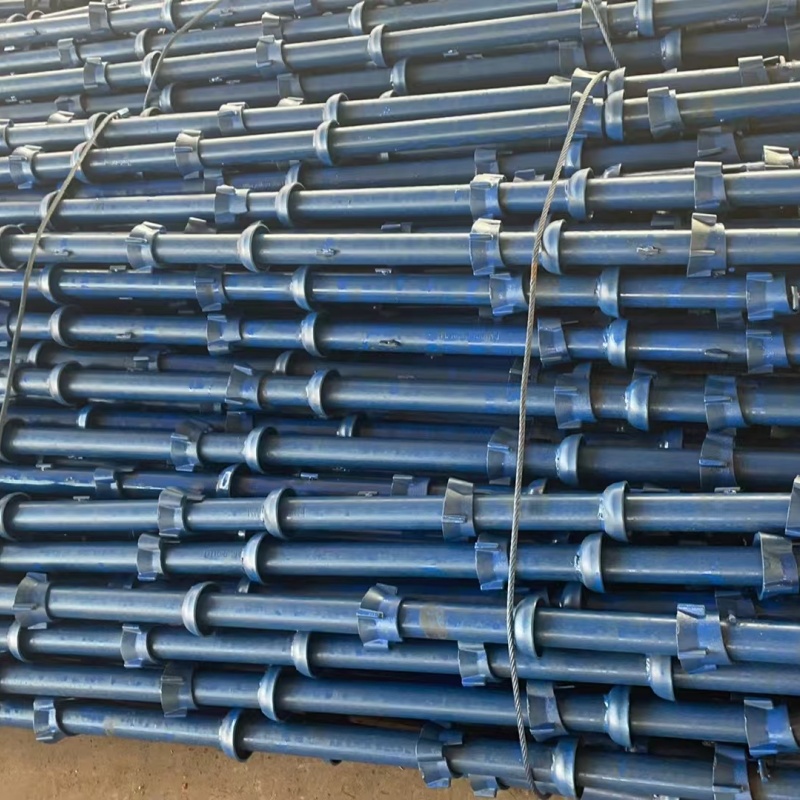

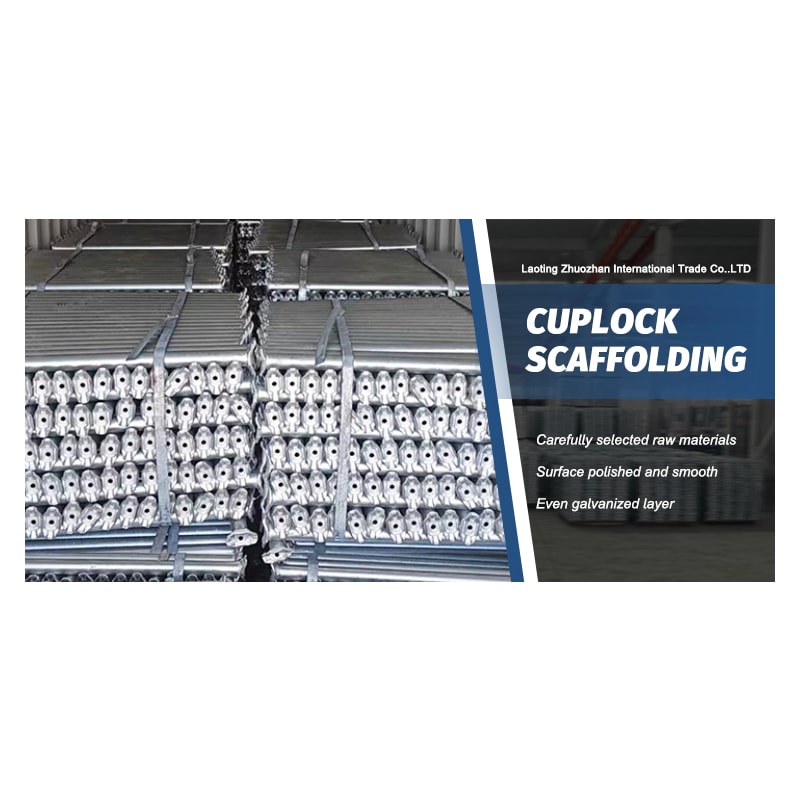

Product Gallery
|
Description |
Explanation |
|
|
Product |
Cuplock scaffolding System |
|
|
Type |
Cuplock rod |
Horizontal Rod |
|
Size |
600-3000mm |
600-1500mm |
|
Wall thickness |
3.5mm/3.25mm |
3.25mm/2.75mm |
|
Standard |
ISO 9001 EN 12810 / 12811 |
|
|
Surface treatment |
Hot-dip galvanizing/Electro-galvanizing/Spray painting |
|
|
Application |
Construction engineering, Bridges and transportation, industry and energy, etc |
|
|

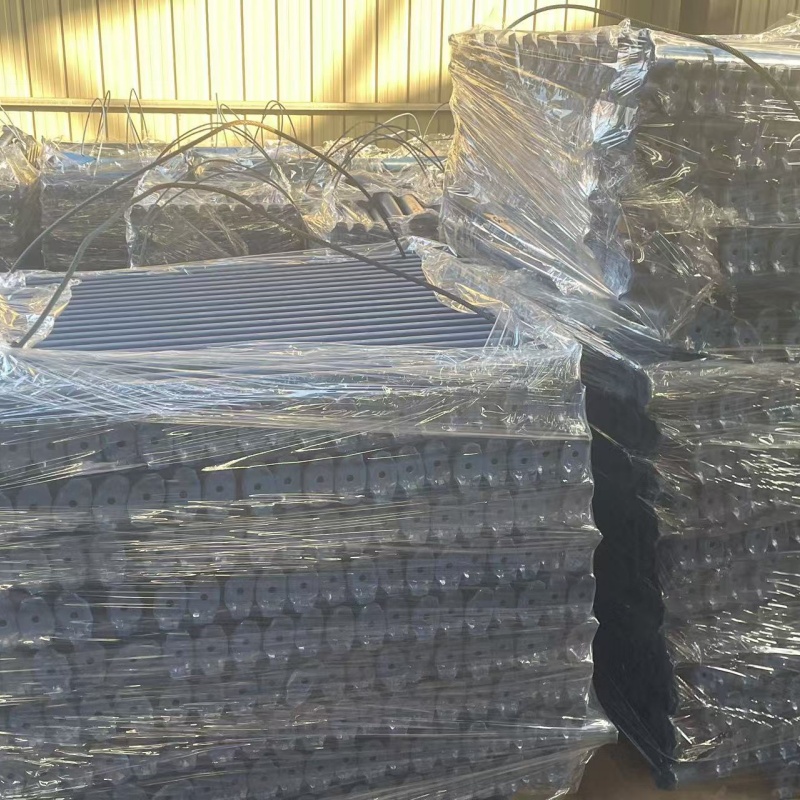

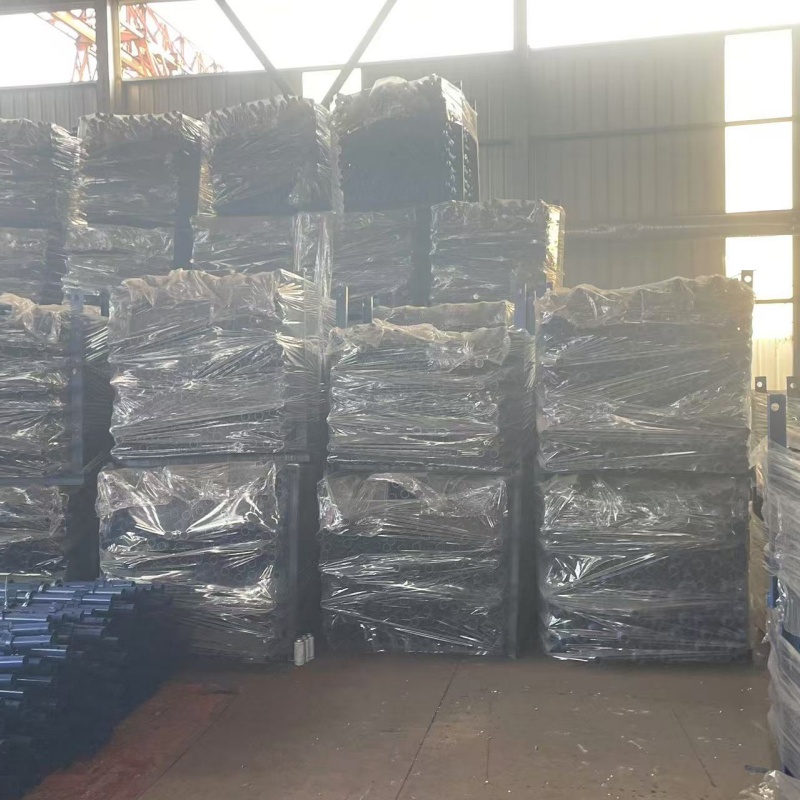

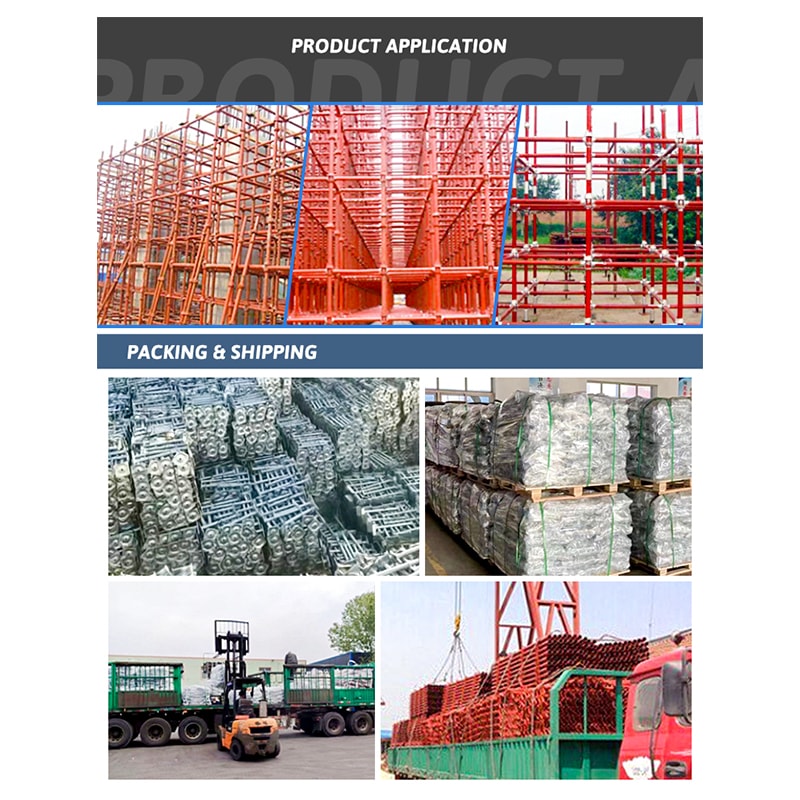

Packaging |

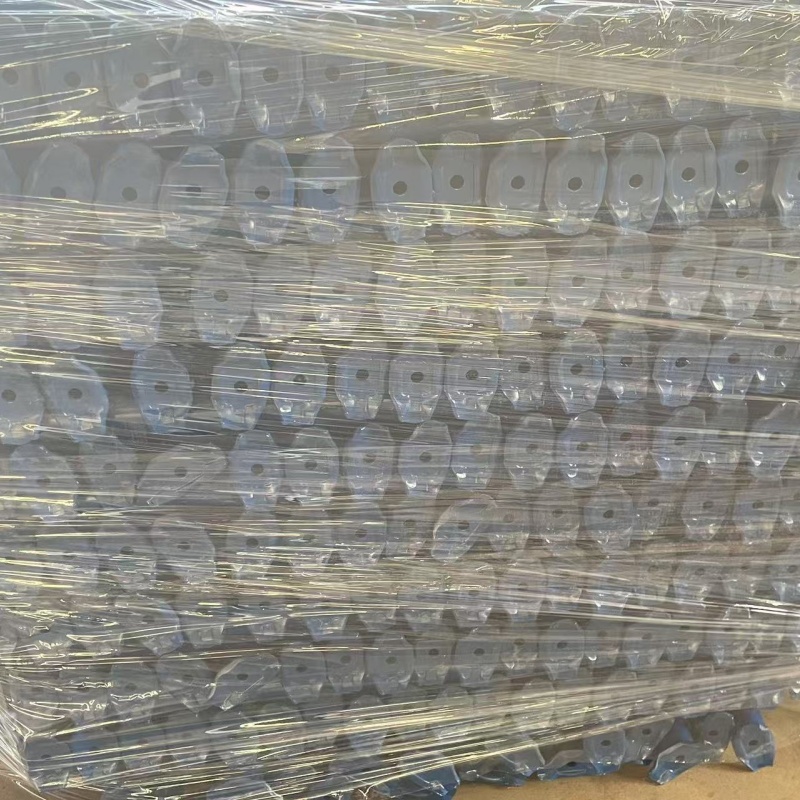

Steel Pallet、Plastic-Wrapped Bundles、Or package as per the customer's requirements |
|
|
Delivery time |
30 to 45 days from the date of drawing confirmation. |
|
|
Payment Terms |
T/T or L/C at sight |
|
Why Choose Zhuozhan?
Choosing Zhuozhan means more than getting reliable scaffolding parts. You’re partnering with a manufacturer who brings 12+ years of experience, 40,000㎡ production space, full system customization, and a proven record of serving 200+ partners across 30+ provinces and 40+ countrie

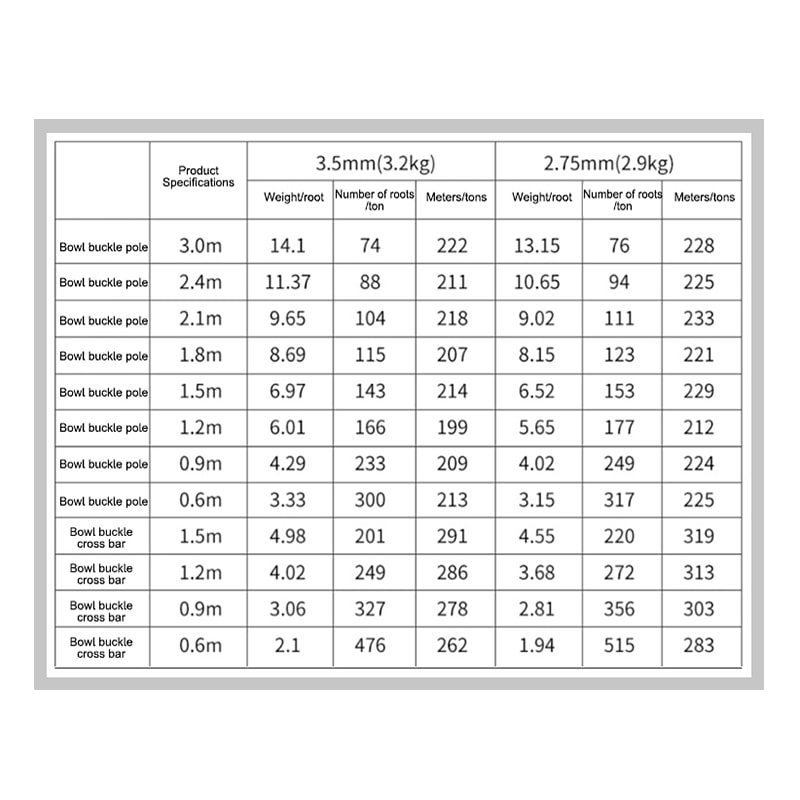

Product parameters
|
Cuplock scaffold Vertical Bars |
|||||||
|
Length(mm) |
Tube thickness(mm) |
Material |
Tube diameter(mm) |
Weight(kg) |
Number of roots/ton |
Meters/tons |
Surface treatment |
|
600 |
3.5 |
Q355 |
48 |
3.69 |
271 |
192 |
Hot-dip galvanizing60μm |
|
900 |
3.5 |
Q355 |
48 |
4.92 |
203 |
203 |
Hot-dip galvanizing60μm |
|
1200 |
3.5 |
Q355 |
48 |
6.85 |
146 |
190 |
Hot-dip galvanizing60μm |
|
1500 |
3.5 |
Q355 |
48 |
8.78 |
114 |
183 |
Hot-dip galvanizing60μm |
|
1800 |
3.5 |
Q355 |
48 |
9.95 |
100 |
190 |
Hot-dip galvanizing60μm |
|
2100 |
3.5 |
Q355 |
48 |
11.08 |
90 |
198 |
Hot-dip galvanizing60μm |
|
2400 |
3.5 |
Q355 |
48 |
13.05 |
76 |
190 |
Hot-dip galvanizing60μm |
|
3000 |
3.5 |
Q355 |
48 |
16.15 |
62 |
192 |
Hot-dip galvanizing60μm |
|
Cuplock scaffold Vertical Bars |
|||||||
|
Length(mm) |
Tube thickness(mm) |
Material |
Tube diameter(mm) |
Weight(kg) |
Number of roots/ton |
Meters/tons |
Surface treatment |
|
600 |
3.25 |
Q355 |
48 |
3.51 |
284 |
284 |
Hot-dip galvanizing60μm |
|
900 |
3.25 |
Q355 |
48 |
4.56 |
219 |
219 |
Hot-dip galvanizing60μm |
|
1200 |
3.25 |
Q355 |
48 |
6.37 |
157 |
157 |
Hot-dip galvanizing60μm |
|
1500 |
3.25 |
Q355 |
48 |
7.42 |
135 |
135 |
Hot-dip galvanizing60μm |
|
1800 |
3.25 |
Q355 |
48 |
9.23 |
108 |
108 |
Hot-dip galvanizing60μm |
|
2100 |
3.25 |
Q355 |
48 |
10.3 |
97 |
97 |
Hot-dip galvanizing60μm |
|
2400 |
3.25 |
Q355 |
48 |
12.09 |
83 |
83 |
Hot-dip galvanizing60μm |
|
3000 |
3.25 |
Q355 |
48 |
14.95 |
67 |
67 |
Hot-dip galvanizing60μm |
|
Cuplock scaffold Vertical Bars |
|||||||
|
Length(mm) |
Tube thickness(mm) |
Material |
Tube diameter(mm) |
Weight(kg) |
Number of roots/ton |
Meters/tons |
Surface treatment |
|
600 |
2.75 |
Q355 |
48 |
3.15 |
317 |
228 |
Hot-dip galvanizing60μm |
|
900 |
2.75 |
Q355 |
48 |
4.02 |
249 |
225 |
Hot-dip galvanizing60μm |
|
1200 |
2.75 |
Q355 |
48 |
5.65 |
177 |
233 |
Hot-dip galvanizing60μm |
|
1500 |
2.75 |
Q355 |
48 |
6.52 |
153 |
221 |
Hot-dip galvanizing60μm |
|
1800 |
2.75 |
Q355 |
48 |
8.15 |
123 |
229 |
Hot-dip galvanizing60μm |
|
2100 |
2.75 |
Q355 |
48 |
9.02 |
111 |
212 |
Hot-dip galvanizing60μm |
|
2400 |
2.75 |
Q355 |
48 |
10.65 |
94 |
224 |
Hot-dip galvanizing60μm |
|
3000 |
2.75 |
Q355 |
48 |
13.15 |
76 |
225 |
Hot-dip galvanizing60μm |
|
Cuplock scaffold Horizontal Bars |
|||||||
|
Length(mm) |
Tube thickness(mm) |
Material |
Tube diameter(mm) |
Weight(kg) |
Number of roots/ton |
Meters/tons |
Surface treatment |
|
600 |
3.5 |
Q355 |
48 |
3.51 |
284 |
284 |
Hot-dip galvanizing60μm |
|
900 |
3.5 |
Q355 |
48 |
4.56 |
219 |
219 |
Hot-dip galvanizing60μm |
|
1200 |
3.5 |
Q355 |
48 |
6.37 |
157 |
157 |
Hot-dip galvanizing60μm |
|
1500 |
3.5 |
Q355 |
48 |
7.42 |
135 |
135 |
Hot-dip galvanizing60μm |
|
Cuplock scaffold Horizontal Bars |
|||||||
|
Length(mm) |
Tube thickness(mm) |
Material |
Tube diameter(mm) |
Weight(kg) |
Number of roots/ton |
Meters/tons |
Surface treatment |
|
600 |
3.25 |
Q355 |
48 |
2.26 |
284 |
284 |
Hot-dip galvanizing60μm |
|
900 |
3.25 |
Q355 |
48 |
3.31 |
219 |
219 |
Hot-dip galvanizing60μm |
|
1200 |
3.25 |
Q355 |
48 |
4.36 |
157 |
157 |
Hot-dip galvanizing60μm |
|
1500 |
3.25 |
Q355 |
48 |
5.4 |
135 |
135 |
Hot-dip galvanizing60μm |
|
Cuplock scaffold Horizontal Bars |
|||||||
|
Length(mm) |
Tube thickness(mm) |
Material |
Tube diameter(mm) |
Weight(kg) |
Number of roots/ton |
Meters/tons |
Surface treatment |
|
600 |
2.75 |
Q355 |
48 |
1.94 |
515 |
283 |
Hot-dip galvanizing60μm |
|
900 |
2.75 |
Q355 |
48 |
2.81 |
356 |
303 |
Hot-dip galvanizing60μm |
|
1200 |
2.75 |
Q355 |
48 |
3.68 |
272 |
313 |
Hot-dip galvanizing60μm |
|
1500 |
2.75 |
Q355 |
48 |
4.55 |
220 |
319 |
Hot-dip galvanizing60μm |
Standard cuplock scaffolding project case
Location: Xi’an, China
Project Type: Steel Structure Factory Building
Application: Full-height façade access, internal maintenance platforms, steel assembly support
Project Overview
This large-scale industrial project involved the construction of a modern steel structure factory with high vertical clearance and complex assembly needs. Reliable, high-capacity scaffolding was essential for façade installation, steel erection, and roof support tasks.
Zhuozhan Solution
Zhuozhan supplied a complete Cuplock Scaffolding System, including vertical standards, ledgers, diagonal braces, and base jacks. The system’s modular design allowed for rapid erection of tall, stable scaffolds that adapted to both concrete walls and steel frame interfaces.
Key Results
Scaffold height exceeded 20m with safe working platforms at each level
Fast installation reduced construction delays
Withstood strong winds and uneven ground with minimal anchoring
Hot-dip galvanized finish protected all components throughout the dry, dusty site environment
→ Zhuozhan Cuplock – the reliable solution for complex industrial construction projects.
FAQ
Q1: What is a standard modular Cuplock scaffolding system?
It’s a scaffolding system built with pre-engineered, standardized components—such as vertical standards, ledgers, and braces—that fit together easily using the cup-and-blade locking mechanism, allowing fast, tool-free assembly across various project types.
Q2: Why is modular design important for construction sites?
Modular design means:
Quick setup and dismantling
Flexible configurations for different site layouts
Reduced labor and training costs
Easy reuse across multiple projects
Q3: Can this system be customized for unique building shapes?
Yes. Though the components are standardized, they can be assembled in custom layouts, making it suitable for curved façades, corners, industrial structures, and tight spaces.
Q4: Is this scaffolding compatible with other brands?
If your existing system follows standard Cuplock dimensions, most components will be compatible. We also offer custom adapters if needed.
Q5: How does the modular Cuplock system help reduce costs?
Fewer components, quicker installation, and high reusability reduce:
Material waste
Storage and transport volume
On-site labor hours
Q6: Is the modular system safe for high-rise use?
Absolutely. Cuplock scaffolding is engineered to support heavy loads and maintain excellent stability even in multi-level and high-rise applications, fully compliant with EN12810 and BS1139 standards.
→ Zhuozhan Cuplock – One system. Endless configurations. Built for real jobsite speed.
