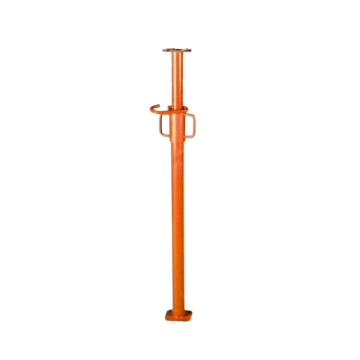

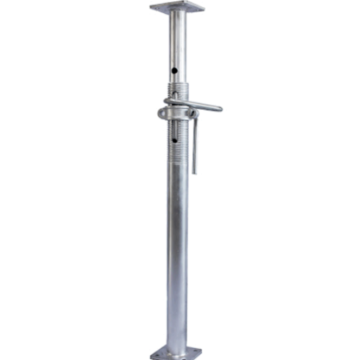

Adjustable Steel Props for Slab Formwork, Beams & Foundations
Zhuozhan adjustable steel props deliver strong vertical support for slab formwork, beams, foundations, and infrastructure projects. With a 1.6m–5.5m adjustable range, high load capacity, and quick installation, they ensure safe, efficient, and cost-effective construction across multiple scenarios.
Product Overview
Zhuozhan adjustable steel props are a high-performance shoring solution designed to meet the diverse demands of modern construction projects. Built with Q235/Q345 high-strength steel and precision screw-thread adjustment, they offer a load capacity of 20–30 kN per prop, ensuring reliable vertical support for slab formwork, beams, foundations, and infrastructure works.
The props feature a 1.6m–5.5m adjustable height range, allowing contractors to use a single system across different pouring heights, which reduces the need for multiple types of shoring equipment. Thanks to their quick adjustment mechanism, installation time is reduced by up to 25%, cutting labor costs significantly.
In terms of durability, Zhuozhan steel props are hot-dip galvanized or powder-coated, providing excellent corrosion resistance and extending service life to 300+ reuse cycles, even in humid or coastal conditions. Their universal compatibility with timber, steel, plastic, and aluminum formwork systems makes them a cost-efficient and versatile investment for construction companies.
With proven applications in residential, commercial, and infrastructure projects, including foundation shoring for underground parking structures and bridge deck support, Zhuozhan steel props have helped contractors achieve 10–15% faster project delivery and reduce material waste by 20–30% compared to traditional timber supports.
Key Features and Advantages
Versatile Application
A single system meets diverse construction needs, including floor slabs, beams, foundations, tunnels, and bridges. This eliminates the need for multiple support equipment, reducing inventory and management costs.
High-Load-Capacity Design
Made of Q235/Q345 high-strength steel, each support can safely bear 20–30 kN, ensuring stability during concrete pouring and large-scale construction.
Highly Adjustable
The adjustment range extends from 1.6–5.5 meters, adapting to different construction stages and pouring heights, meeting the diverse needs of complex projects.
Quick Assembly and Disassembly Saves Time
The threaded adjustment mechanism reduces installation and disassembly time by 20–25% compared to traditional wooden supports, reducing labor and shortening overall construction time.
Corrosion-Resistant, Long-Life
The surface is hot-dip galvanized or electrostatically sprayed for rust and wear resistance. It remains stable even in humid, coastal, or open-air construction sites and can be reused over 300 times.
Reduced total costs: Reduced one-time lumber consumption, reduced maintenance frequency, and increased turnover rates help contractors reduce overall costs by 15–20%.
Product parameters
|
Italian steel support |
||||
|
Wall thickness |
Min |
Max |
Outer pipe diameter |
Inner pipe diameter |
|
15.-3.5mm |
1.7m |
3.0m |
56mm |
48mm |
|
1.8m |
3.2m |
56mm |
48mm |
|
|
2.0m |
3.5m |
56mm |
48mm |
|
|
2.0m |
3.6m |
56mm |
48mm |
|
|
2.2m |
4.0m |
56mm |
48mm |
|
|
2.5m |
4.5m |
56mm |
48mm |
|
|
2.8m |
5.0m |
56mm |
48mm |
|
|
3.0m |
5.0m |
56mm |
48mm |
|
|
3.5m |
6.0m |
56mm |
48mm |
|
|
Surface treatment |
Spraying, powder spraying, electro-galvanizing, hot-dip galvanizing |
|||
|
Other specifications can be customized as per your requirements. |
||||
|
Middle Eastern and German-style steel support specifications |
||||
|
Wall thickness |
Min |
Max |
Outer pipe diameter |
Inner pipe diameter |
|
15.-3.5mm |
1.7m |
3.0m |
60mm |
48mm |
|
1.8m |
3.2m |
60mm |
48mm |
|
|
2.0m |
3.5m |
60mm |
48mm |
|
|
2.0m |
3.6m |
60mm |
48mm |
|
|
2.2m |
4.0m |
60mm |
48mm |
|
|
2.5m |
4.5m |
60mm |
48mm |
|
|
2.8m |
5.0m |
60mm |
48mm |
|
|
3.0m |
5.0m |
60mm |
48mm |
|
|
3.5m |
6.0m |
60mm |
48mm |
|
|
Surface treatment |
Spraying, powder spraying, electro-galvanizing, hot-dip galvanizing |
|||
|
Other specifications can be customized as per your requirements. |
||||
Case Study: Guangzhou Science City R&D Building Project
Project Background
A new five-story R&D building with a total construction area of approximately 18,000 square meters was constructed in Guangzhou Science City. The contractor required a support system that would support pouring at a 4.5-meter floor height while ensuring completion within a compressed six-month construction period.
Solution
The contractor selected 3,200 sets of Zhuozhan hot-dip galvanized adjustable steel props, combined with an H20 timber beam and steel formwork system.
Adjustable height: 1.8–5.0m, flexible for varying floor heights.
Single support bearing capacity: 28kN, meeting the needs of thick slab casting.
Improvedinstallation efficiency: Approximately 22% faster than traditional wooden bracing.
Project Results
Shortened casting cycle: Casting time per floor was reduced by an average of 3 days, resulting in an overall construction schedule 15 days ahead of schedule.
Reduced material costs: Reduced single-use lumber usage, saving approximately 18% in material costs.
Improved safety: The system provides strong support stability, resulting in a more organized on-site support structure and reducing safety hazards.
Customer Testimonials
"Zhuozhan's steel bracing system truly improves construction efficiency. The smooth adjustment of the nuts, in particular, saves significant manual adjustment time. We will continue to use it on future projects."
Why Choose Zhuozhan Steel Props?
Global Quality Standards
All steel bracings comply with EN1065 and ISO 9001 standards, ensuring reliable performance on international projects.
High Load-Bearing Capacity
Each brace is made of high-strength Q235/Q345 steel with a load-bearing capacity of up to 30kN, suitable for heavy concrete slabs and beams.
Adjustable and Easy to Use
A wide height range (1.5m to 6.0m) and smooth nut adjustment allow for quick installation, reducing on-site labor time by over 20%.
Proven Global Projects
Exported to over 40 countries, our products are widely used in high-rise buildings, bridges, and subway stations, earning positive feedback from contractors.
Strict Quality Control
Each batch undergoes static and dynamic load testing before delivery to ensure safety and consistency.
Long-Term Cost Savings
The hot-dip galvanized surface treatment provides a service life of over 5 years, reducing replacement and maintenance costs.
FAQ
Q1: What standards do Zhuozhan steel props comply with?
A1: Our props are manufactured in accordance with EN1065 and ISO 9001 quality management standards and are fully load-tested before shipment.
Q2: What is the maximum load capacity of your steel props?
A2: Depending on the model, each prop can safely support up to 30-40 kN, suitable for heavy concrete slabs, beams, and bridge decks.
Q3: Can the props be reused for multiple projects?
A3: Yes, with proper maintenance, Zhuozhan steel props can be reused over 300 times, significantly reducing material waste and project costs.
Q4: Do you offer hot-dip galvanizing for corrosion protection?
A4: Yes, we offer hot-dip galvanizing, electro-galvanizing, and painting finishes, ideal for humid, coastal, or outdoor environments.
Q5: What is your typical lead time for bulk orders?
A5: Our standard delivery time for containerized orders is 20-30 days. We keep common sizes in stock to support urgent projects.
Q6: Can you customize props to our required height?
A6: Of course. We can produce props ranging from 1.5 meters to 6.0 meters in height, and we offer OEM services with your brand logo upon request.
Q7: How do you ensure the safety of your products during transportation?
A7: All props are packaged on steel pallets, coated with anti-rust oil and stretch film to ensure they arrive at your site intact.
