Hot dip galvanized steel pipe for builders

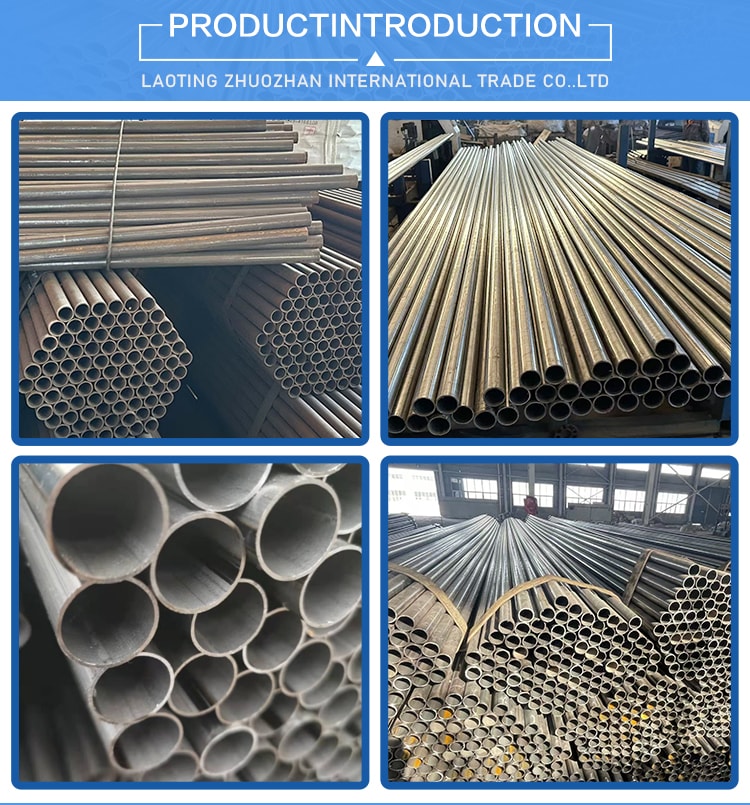

Product Overview

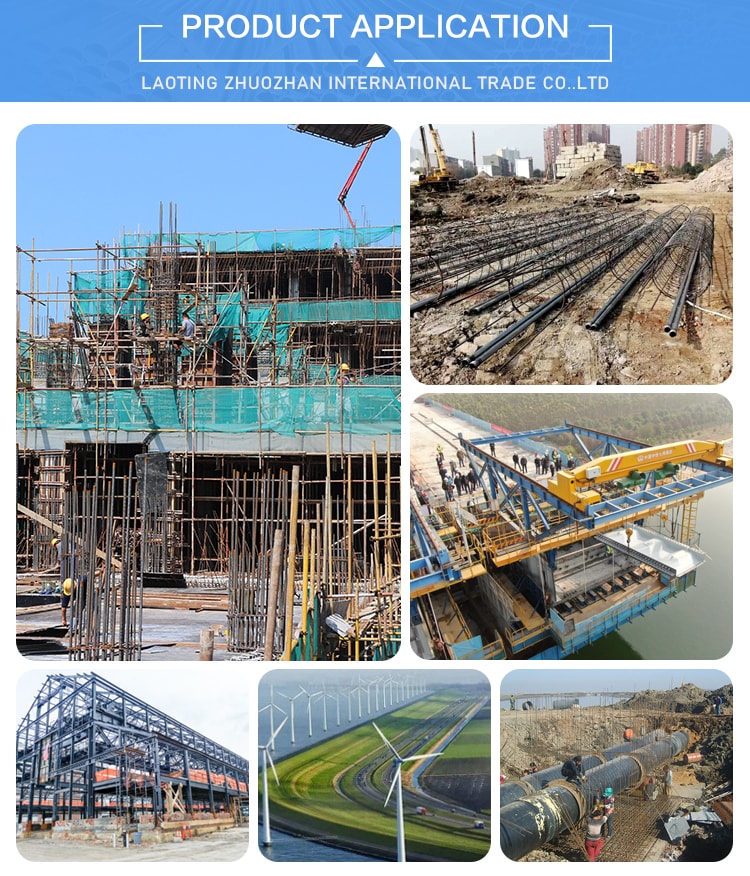

Zhuozhan high-quality carbon steel pipes are designed for scaffolding, formwork support, and general structural construction. Manufactured from Q235, Q345, and Q355B grades, these pipes offer excellent yield strength (≥235–355 MPa) and superior load-bearing performance.
To ensure the long-term durability of our pipes, we offer a variety of surface treatments, including hot-dip galvanizing (zinc layer thickness ≥ 80–120 μm, providing rust protection for over 10 years), cold-dip galvanizing, and painting, giving you the flexibility to choose the best solution for your project environment.
Each pipe is manufactured under strict dimensional tolerances (outer diameter tolerance ≤ ±0.5 mm), ensuring smooth assembly with scaffolding systems such as loop, cup, and frame scaffolds. Our pipes have been proven to last 3–5 times longer than untreated pipe, helping to improve site safety while reducing overall maintenance costs.
Key Features & Benefits
High Strength & Safety
Yield Strength ≥ 235–355 MPa (Q235/Q345/Q355B)
Higher load-bearing capacity, reducing the risk of bending, deformation, or failure
Excellent corrosion resistance
Hot-dip galvanized zinc layer ≥ 80–120 μm
Rust-resistant life of over 10 years, suitable for outdoor and harsh environments
High-precision manufacturing
Outer diameter tolerance ≤ ±0.5 mm, wall thickness tolerance ≤ ±0.3 mm
Ensures perfect compatibility with clasp, cup, and portal scaffolding for smooth installation
Extremely long service life
Lifespan 3–5 times longer than ordinary black pipe
Can be reused multiple times, reducing total project costs
Compliant with international standards
Compliant with EN39, BS1139, JIS G3444, and GB/T 3091
Easy to export and declare, globally recognized
Flexible customization options
Optional lengths 1.0–6.0 m, wall thickness 2.5–4.0 mm
Supports OEM/ODM to meet diverse project needs
Cost-effective solution
Reduces replacement frequency and maintenance costs
Improves construction efficiency and project safety
Product parameters
|
Outer Diameter |
Wall Thickness |
Length |
Weight |
Zinc Coating |
Standard |
|
48.3 mm (1.5") |
1.5 mm |
6 m/ 19.7 ft |
2.2 kg/m |
≥200 g/m² (Hot-dip) |
BS1139/EN39 |
|
48.3 mm (1.5") |
2.0 mm |
6 m/ 19.7 ft |
2.7 kg/m |
≥200 g/m² (Hot-dip) |
BS1139/EN39 |
|
48.3 mm (1.5") |
2.5 mm |
6 m/ 19.7 ft |
3.4 kg/m |
≥200 g/m² (Hot-dip) |
BS1139/EN39 |
|
48.3 mm (1.5") |
3.2 mm |
6 m/ 19.7 ft |
4.2 kg/m |
≥200 g/m² (Hot-dip) |
BS1139/EN39 |
|
48.3 mm (1.5") |
4.0 mm |
6 m/ 19.7 ft |
5.1 kg/m |
≥200 g/m² (Hot-dip) |
BS1139/EN39 |
|
60.0 mm(2.36") |
2.0 mm |
6 m/ 19.7 ft |
3.4 kg/m |
≥200 g/m² (Hot-dip) |
EN10240/ASTM A53 |
|
60.0 mm(2.36") |
2.5 mm |
6 m/ 19.7 ft |
4.2 kg/m |
≥200 g/m² (Hot-dip) |
EN10240/ASTM A53 |
|
60.0 mm(2.36") |
3.2 mm |
6 m/ 19.7 ft |
5.3 kg/m |
≥200 g/m² (Hot-dip) |
EN10240/ASTM A53 |
|
Custom Size |
As request |
Up to 12 m |
As request |
120-600 g/m² |
ASTM /EN /JIS |
Why Choose Zhuozhan Steel Pipe?
Factory Direct
Lower costs and consistent quality—no middleman markups.
Strict Quality Control
Outer diameter, wall thickness, and galvanizing are 100% inspected before shipment.
Proven Durability
Hot-dip galvanized pipes with a zinc layer thickness of ≥80–120 μm offer rust protection for over 10 years.
Global Export Experience
Our products are certified to EN39, BS1139, and JIS G3444, serving over 50 countries.
Customization
Customized lengths, special wall thicknesses, and OEM/ODM packaging are available based on project requirements.
Fast Delivery
Adequate inventory ensures delivery within 15-25 days, even for bulk orders.
Professional Support
Our engineering team provides technical guidance and scaffolding solutions.
